Главная Каталог запчастей Запчасти для промышленных швейных машин PROTEX TY-500 PROTEX 3.

3.

Вернуться к выбору схем

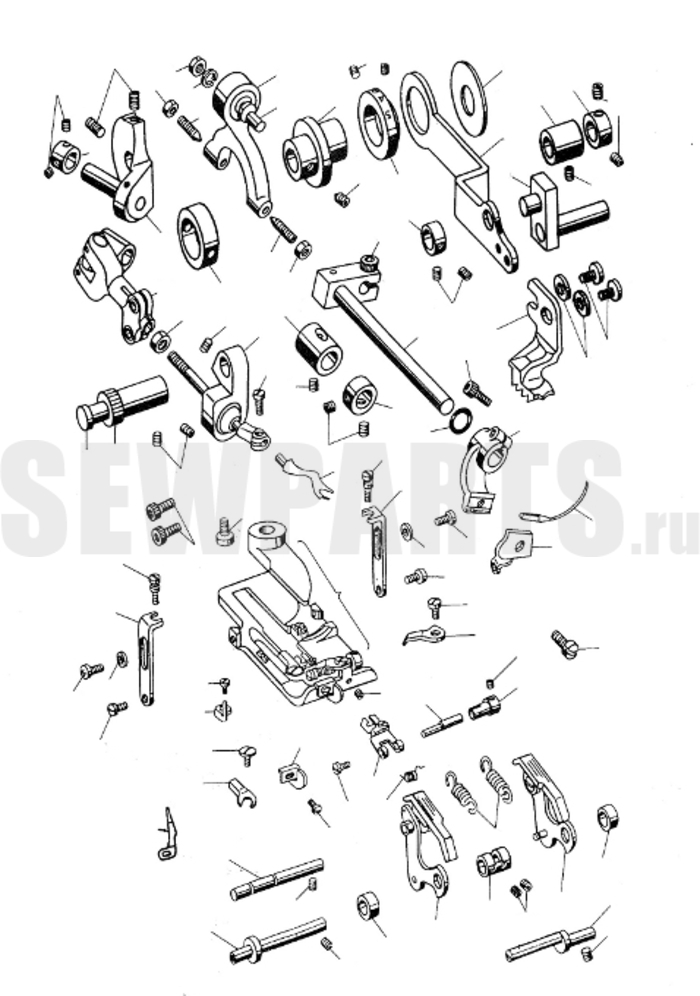

Выбор схемы:

3.

Как искать запчасти?

1

2

3

4

4

5

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

30

31

32

33

34

35

36

37

37

38

39

40

41

42

43

43

44

44

45

46

47

48

48

49

49

50

50

51

51

52

52

53

54

55

56

57

58

59

60

61

62

63

64

65

66

67

68

69

70

71

72

73

74

75

76

77

78

78

79

80

81

82

100%

№

Артикул Артикул и наименование

Наименование

21038 eccentric magnet sleeve

0085010 fixing bolt for eccentric magnet sleeve

21046 needle yoke sleeve

21047 bolt for needle yoke

21048 nut for needle yoke

S-21049-A needle yoke skeleton

21052-B pin for needle yoke eccentric magnet sleeve

TY-8179 spring sleeve of pin for needle yoke eccentric magnet sleeve

C-10022 nut of pin for needle yoke eccentric magnet sleeve

S-21053 needle holder axle

0214016 clamping bolt for needle holder axle

21055 locating ring of needle holder axle

0094006.3 fixing bolt for location ring of needle holder axle

21016.3 sleeve of needle holder shaft

0096006.7 fixing bolt for needle holder shaft sleeve

19034 o-ring of needle holder shaft

17

210356 / KL-25 Под заказ Петлитель нижний тип E32/52 (Арт. 210356)

0215016 clamping screw for needle holder

4025-A needle clip

TY-121 needle clamping screw

4181.1 needle (model no.lwx6t)

S-21057 handle and pin of ring-making driver

0096014.2 fixing bolt for ring-making driver

S-21059 yoke of ring-making driver

0214012.2 fixing screw for ring-maker yoke

17037 pin sleeve of ring maker

17146 fixing bolt for pin sleeve of ring maker

S-21062-A joint components of ring maker

210048 fixing nut for joint components of ring maker

0096006.8 clamping bolt for joint of ring-maker

4040 looper clamp screw

21064 connecting pin of ring maker

21065 sleeve of connection eccentric wheel of ring maker

0064008 fixing bolt for sleeve of connecting eccentric wheel of ring maker

21039-A adjusting wheel of stitching

0094006.4 fixing bolt for adjusting wheel of stitching

21040 feeding pull-rod slice

21041 thrust washer for feeding pull-rod

S-21042-A crank of feeding pull-rod

10517.2 location sleeve for crank of feeding pull-rod

0094006.5 fixing bolt for location sleeve for crank of feeding pull-rod

21045 crank sleeve of feeding pull-rod

0094004.3 fixing bolt for crank sleeve of feeding pull-rod

4047-C feeding stopper

2528 feed dog washer

4048-A.1 fixing screw for washer for feeding stopper

4061-A needle plate bracket

21066 adjusting screw for stand of seam turner

0144008.4 clamping screw for stand of seam turner

11158 needle plate bracket screw

4186 clamping screw for seam turner

21067 fixing screw for stand of seam turner

54

PF100 Под заказ Прижимная лапка в сборе тип. А-600 (арт. PF100)

4048-A work plate bracket leaf spring set screw

4185.1 fixing screw for chain finger

4052-A needle guide

4059 edge guide

4185.2 edge guider

61

4055-CAS Под заказ Винт направляющей Тип.TY 500 (Арт.4055-CAS)

4056 cloth retainer

4054 cloth retainer

4183 cloth retainer

4053 cloth retainer eccentric stud bushing

130-B thread nipper releasing pin collar set screw

4057-B bolt for locator stopper (self-drive)

4001 cloth stopper

4182 cloth retainer stopper set screw

S-21072 cloth feeder (left)

S-21073 cloth feeder (right)

21078 spring for stand of cloth feeder

21079 spring pin for stand of cloth feeder

0094006.6 fixing bolt for spring pin for stand of cloth feeder

21075 stand axle of cloth feeder

004006 fixing bolt for stand axle of cloth feeder

21076 stand sleeve of cloth feeder

21077 stopping sleeve for cloth feeder stand axle

0094004.4 fixing bolt for stopping sleeve for cloth feeder stand axle

21080 eccentric axle of cloth feeder stand

0094006.7 fixing bolt for eccentric axle of cloth feeder stand
